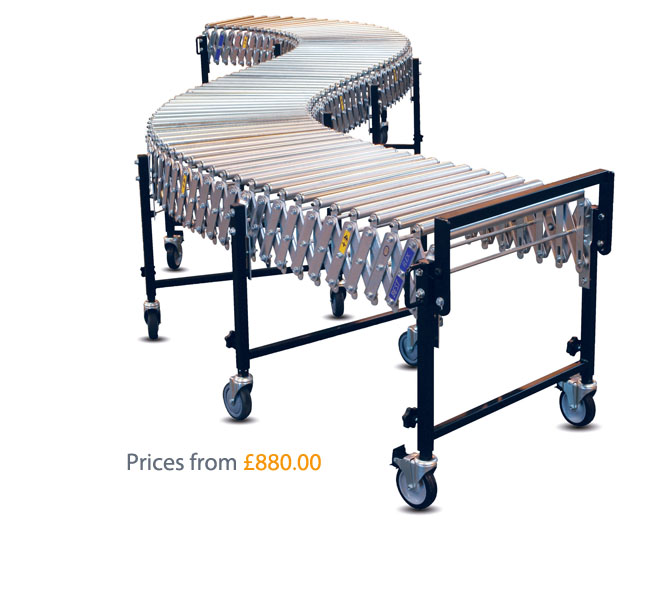

Flexible Conveyors Roller BFR-Roller.Flexible and Expandable
Gravity Applications
Excellent for handling odd shaped boxes, bags and low grade cartons. These conveyors are both expandable and flexible so whatever the aplication the BFR range has a conveyor model to suit. A proven performer for truck loading and unloading. Ideally suited for packaging, distribution centres, shipping and receiving and flexible assembly lines. Built tough to handle applications running three shifts per day. The Optional Impact Support Section is recommended for high impact receiving applications.
- 220 kg capacity per linear metre (level).
- 762 to 1080 mm adjustable conveyor height.
- 450, 600 and 750 mm conveyor widths
- Available in any length to fit your applications
- Self Tracking – Cartons follow the twists and turns of the conveyor path without using engineered curves.
- Adjustable Height – Adjustable locking bolts to raise or lower the conveyor bed height.
- Square Tubing Legs – BEST offers heavy duty square tubing legs for longer service life.
- 32mm Side Plates – Aluminium alloy construction features a ribbed design for added durability. Assembled with bolts and lock nuts.
- Structural Steel Support – Channel steel spans the entire conveyor width for unequalled strength.
- Castors with brakes – 127mm x 38mm swivel castors roll easily. Castor brakes lock both wheel and swivel simultaneously while the conveyor is in use.
|
|
|
|
 |
Package Stop
Stops cartons at the end of the
conveyor and drops down when
not needed.
All widths £52.50 |
|
 |
Heavy Duty Roller Connector
Easily connects two or more
conveyors to span greater distances.
per set £49.50 |
 |
Axle Centres
Optional 76mm and 102mm
axle centres are available for
small package applications.
POA |
|
 |
Side Rails
Prevents cartons from
skewing off the conveyor in
accumulation applications.
per 305mm £28.50 |
|
 |
150mm x 50mm Swivel Castors
For easier rolling over uneven
surfaces. Adds 23mm to conveyor height.
Per leg set £21.00 |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
| Model Number |
Closed to extended length |
Number of legs |
Rollerr axle centre |
Shipping weight |
Price |
| BFR-18-12 |
1300mm to 3700mm |
4 |
127mm |
78kg |
£880.00 |
| BFR-18-16 |
1700mm to 4900mm |
5 |
127mm |
103kg |
£1,145.00 |
| BFR-18-20 |
2100mm to 6100mm |
6 |
127mm |
128kg |
£1,410.00 |
| BFR-18-24 |
2600mm to 7400mm |
7 |
127mm |
153kg |
£1,675.00 |
|
| Model Number |
Closed to extended length |
Number of legs |
Rollerr axle centre |
Shipping weight |
Price |
| BFR-24-12 |
1300mm to 3700mm |
4 |
127mm |
90kg |
£925.00 |
| BFR-24-16 |
1700mm to 4900mm |
5 |
127mm |
116kg |
£1,200.00 |
| BFR-24-20 |
2100mm to 6100mm |
6 |
127mm |
145kg |
£1,475.00 |
| BFR-24-24 |
2600mm to 7400mm |
7 |
127mm |
174kg |
£1,750.00 |
|
| Model Number |
Closed to extended length |
Number of legs |
Rollerr axle centre |
Shipping weight |
Price |
| BFR-30-12 |
1300mm to 3700mm |
4 |
127mm |
102kg |
£945.00 |
| BFR-30-16 |
1700mm to 4900mm |
5 |
127mm |
122kg |
£1,230.00 |
| BFR-30-20 |
2100mm to 6100mm |
6 |
127mm |
153kg |
£1,515.00 |
| BFR-30-24 |
2500mm to 7300mm |
7 |
127mm |
184kg |
£1,8100.00 |
- Flexible roller conveyors can be manufactured in custom length to suit your individual conveyor application.
