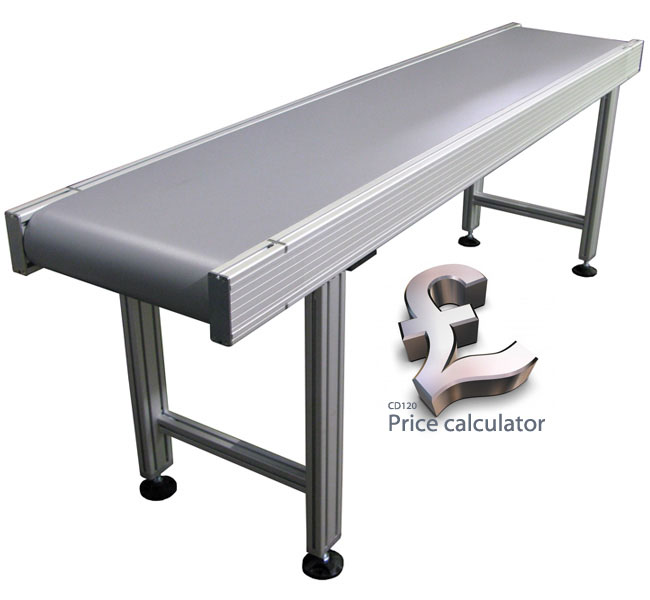

CD120 belt conveyors are suitable for a multitude of handling tasks where strength and robustness are required. Manufactured from extruded aluminium ‘C’ section profile with folded modular galvanised steel skid beds it gives a good combination of strength and versatility. The conveyors can be driven either by a 113mm diameter motorised drum roller or a 113mm diameter fabricated roller with a shaft mounted geared motor, the terminal rollers are also 113mm diameter. The drive and terminal rollers are fully encapsulated by the conveyor belt and the roller adjustment is fully covered by the conveyor side frame make these conveyor one of the safest available. The conveyors can handle a product loading of up to 50Kg per metre. The drive and terminal rollers are fitted into modular carriages that are fully adjustable and easily removable for maintenance. The conveyor belt is fully guided using our TrueTrack belt guidance system.
We manufacture CD120 Belt Conveyors in the following options:
- Motorized Drum Roller Drive Belt Conveyors
- Shaft Mounted Geared Motor Drive Belt Conveyors
- Belt conveyor systems
- Incline/Decline Belt Conveyors
- Multi Tiered Belt Conveyors
- Special Purpose Belt Conveyors
- Swan neck belt conveyors
- Hold down belt conveyors
|
|
|
- Features
- Up to 50kg capacity per linear metre (level)
- Belt width from 280mm to 1030mm in 50mm increments
- Available in any length to fit your applications
- Self tracking belts– increased belt life.
- Adjustable height
- Extruded aluminium profile frames and support legs
- Motorized drum roller drives
- Plug and play control options
|
|
|
Geared Motor
drives give a wide range of powers and speed options, all CD120 belt conveyors can be specified with this option. Rubber lagged drive drum option available.
|
 |
Belt Conveyor Systems
from a simple storage to fully automated assembly system all can be assembled from basic CD120 belt conveyor modules.
|
|
 |
Incline/Decline
belt conveyor with either grip top or flighted belts, side guides and stop start reverse options. Ideal for mezzanine floors.
|
|
 |
Multi-tiered
belt conveyors with automated lift conveyor ideal for product storage or when space is limited.
|
|
|
Swan Neck Belt Conveyors
convey parts from horizontal to incline then back to horizontal and are ideal for plastic part removal from injection moulding machines.
|
|
 |
Specials
if a standard belt conveyor will not do let us know what you need and we will build it for you.
|
|
 |
Hold Down Belt Conveyors
convey parts from horizontal to incline and are ideal for plastic part removal from injection moulding machines.
|
|
- Electrical control options
|
|
Conveyor technical details |
 |
Variable speed
stop start with stop start push buttons and variable speed potentiometer or stop start rocker switch and variable speed potentiometer (dependant on control option). Coated steel enclosure (IP65) 300mm high, 200mm wide, 150mm deep.
Prices from £295.00 each
|
|
 |
Stop start (DOL)
single/three phase direct online stop start with 240/415 volt coil complete with overload .
Prices from £76.00 each
|
|
|
| |
|
|
 |
Emergency stop
button twist release.
Prices from £28.00 each
|
|
 |
PEC sensor
phote electric sensor kit including sensor, mounting bracket, reflector with mounting block.
Prices from £78.00 each
|
|
|
. |
