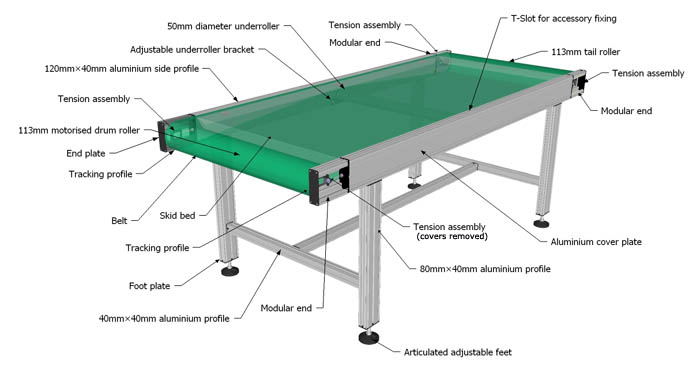

1: |
|
M16 thread with 80mm diameter articulated foot , 2 off 11mm diameter fixing holes |
|
2: |
|
113mm diameter motorised drum roller |
|
3: |
|
40mm × 40mm extruded aluminium profile with 4 off 10mm T slots |
|
4: |
|
80mm × 40mm extruded aluminium profile with 4 off 10mm T slots |
|
5: |
|
120mm × 40mm extruded aluminium profile with 4 off 10mm T slots and clip in cover plate |
|
6: |
|
113mm diameter terminal roller |
|
|
|
|
|
A: |
|
Conveyor length |
|
B: |
|
Belt width + 86mm |
|
C: |
|
Conveyor height +- 30mm adjustment |
|
D: |
|
Belt width |
|
| |
|
|
|
| Maximum length: |
|
30 metres |
|
| Belt width: |
|
280mm to 1280mm (In 50mm increments) |
|
| Conveyor width: |
|
Belt width + 86mm |
|
| Conveyor height: |
|
800mm +- 30mm adjustment (others on request) |
|
| Drive type: |
|
113mm diameter motorised drum roller as standard (geared motor on request) |
|
| Drive Power: |
|
0.06 to 0.37kw dependant on product load, conveyor length and belt speed |
|
| Voltage: |
|
110v 1ph 50Hz - 240v 1ph 50Hz - 230v 3ph 50Hz - 415v 3ph 50hz |
|
| Drive position: |
|
End as standard (centre drive on request) |
|
| Terminal roller: |
|
113mm as standard (80mm, 50mm or 38mm on request) |
|
| Bed construction |
|
Skid bed type made from 2mm punched and folded galvanised mild steel |
|
| Maximum load: |
|
Up to 25 Kg/m (dependant on belt length and width) |
|
| Belt speed: |
|
10m/min standard (options available from 4.2 to 63.6 m/min) |
|
| Belt type: |
|
2 Ply PVC black or green as standard (PU and Grip top, others on request) |
|
| Belt tracking: |
|
All belts are fitted with twin PU tracking profiles. |
|
| Under rollers : |
|
50mm diameter with precision bearings |
|
| |
|
|
|
|
|
|
Direct online stop start complete with overload |
|
| |
|
Variable speed stop start |
|
| |
|
Production stop |
|
| |
|
24v DC Emergency stop |
|
| |
|
24v DC Emergency stop with safety relay |
|
| |
|
Photo electric cell end stop control |
|
| |
|
Foot switch |
|
| |
|
Remote stop start |
|
| |
|
Timed stop start |
|
| |
|
Panel mounted PLC |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
Side Guides |
|
| |
|
End stop |
|
| |
|
Castors |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
